| 4U-HS6524 Specifications |
| Feature |
|
|
| Description |
| Model No. | : | 4U-H6524 |
|
|
| Size |
| : | L650*W431*H88MM |
|
| Colour | : | Black / Silver |
|
|
| Material | : | 1.0mm SGCC |
|
|
| Drive Bay | : | 3.5" HDD*24（compatible 2.5" HDD/SSD |
| Hotswap Backplane | : | 6Gb/s Expander（SFF8087）port ,w/ Ttemperature Control ， |
| : | W/SGPIO,W/ TSAR ,Optional:12Gb/s Expander |
| M/B support | : | Supermicro X10DRG-Q / Tyan S7105, Max to 12"*13 |
| Power Supply Support | : | Redundant Power supply module GW-BKPH2CBO |

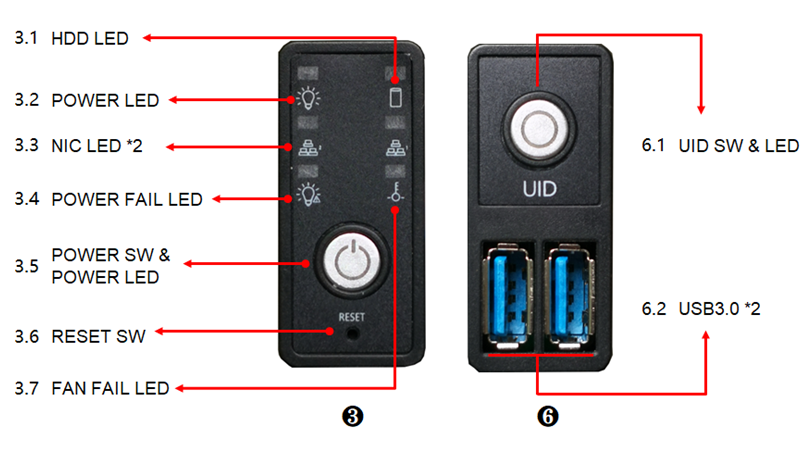

| Front Control Switch | : | Power LED*1，Reset*1，Power SW*1， |
| Front LED Indicator | : | HDD LED*1 NIC LED*2*1，UID LED*1，UID SW*1 Power Fail LED*1 |
| Front Ports | : | USB 2.0*2 |
|
|
| Expansion Slot | : | Full size PCI/PCIE*11 Vertical Position |
| Cooling Fan | : | 12cm Fan *3 ,Optional :Support Hotswap /Rear 8cm fan *2 |
| N.W / G.W | : | 14.8 kgs / 17.6 kgs |
|
| Packing Carton Size | : | 84.5*56.5*24.5CM /4.13 Cuft with Poly Foam /carton |
|
|
|
|
|
|

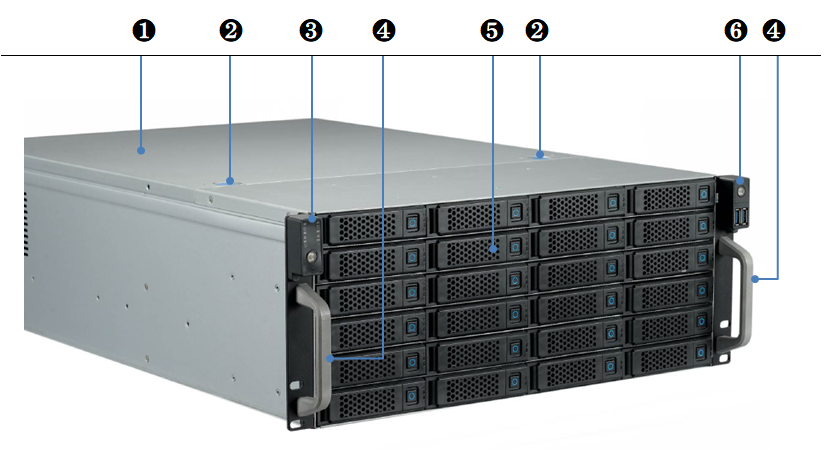

| System Features Overview |
| ❶ | SGCC sheet metal cover & main structure | ❹ | Aluminum Handle & holder |
| ❷ | Tool-less cover button |
|
| ❺ | 3.5" storage driver bay*12 |
| ❸ | Front LED indicator |
|
| ❻ | Front I/O switch |
