| 2U-380AL Specifications |
| Feature |
| Description |
|
|
| Model No. |
| 2U-380AL |
|
|
| Dimension | : | D*W*H(mm)：380*430*89 |
| Colour | : | Black﹙Standard﹚ |
|
| Material | : | 1.0mm SGCC |
|
|
| M/B support | : | ATX(12''*9.6'') |
|
|
| Drive Bay | : | 3.5'' HDD/FDD *4 ; 5.25'' CD-ROM*1 |
| Power Supply Support | : | Standard ATX |
|
|

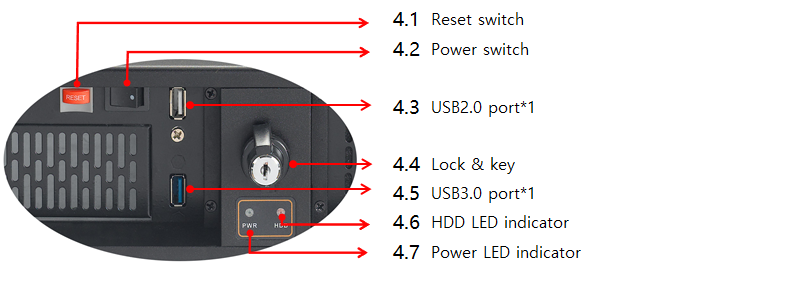

| Front Control Switch | : | Lock*1 ; Power ON/OFF x1 ; Reset x1 ; |
| Front LED Indicator | : | Power *1 ; HDD *1 |
|
| Front Ports | : | USB2.0 x1 ; USB3.0 x1 |
|
| Expansion Slot | : | 4 vertical PCI expansion slots (standard) |
| Expansion Slot | : | 7 vertical PCI expansion slots (optional) |
| Cooling Fan | : | Front:8025*2 |
|
|
| N.W / G.W | : | 6.0kgs / 7.0kgs |
|
|
| Packing Carton Size |
| W*D*H: 56*46.5*16CM / 1.48 cuft / Single carton with Poly foam |
|
|
|
|
|
|

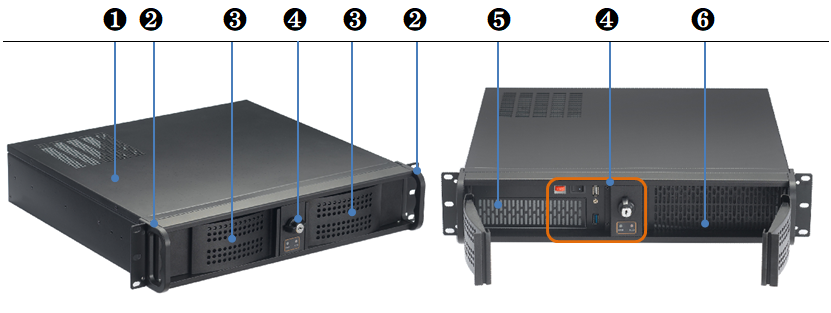

| System Features Overview |
|
|
| ❶ | SGCC sheet metal cover & main structure | ❹ | Front control Kits |
| ❷ | Aluminum Handle & holder | ❺ | 5.25" CD-ROM bay *1 |
| ❸ | Aluminum door with air filter | ❻ | Front air filter with cooling fan 8025 *2 inside |
