| 2U-535 Specifications |
| Feature |
| Description |
|
|
| Model No. |
| 2U-535 |
|
|
| Dimension | : | D*W*H(mm)：530*427*88 |
| Colour | : | Black﹙Standard﹚ |
|
| Material | : | 1.0mm SGCC |
|
|
| M/B support | : | MAX:CEB(12''*10.5'') |
|
| Drive Bay | : | 3.5'' HDD/FDD *7 ; 5.25'' CD-ROM*1 |
| Power Supply Support | : | Standard ATX / 2U Power |

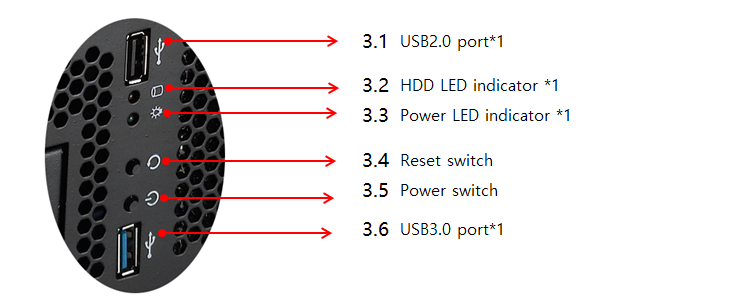

| Front Control Switch | : | Power ON/OFF x1 ; Reset x1 ; |
| Front LED Indicator | : | Power *1 ; HDD *1 |
|
| Front Ports | : | USB2.0 x2 |
|
|
| Expansion Slot | : | 7 vertical PCI expansion slots (standard) |
| Expansion Slot | : | 3 Horizontal Riser Support﹙ optional﹚ |
| Cooling Fan | : | Front:8025*2; Middle:8025*2 ; Rear:8025*1(optional) |
| N.W / G.W | : | 6.0kgs / 7.0kgs |
|
|
| Packing Carton Size |
| W*D*H: 69*46.5*16CM / 1.82 cuft / Single carton with Poly foam |
|
|
|
|
|
|

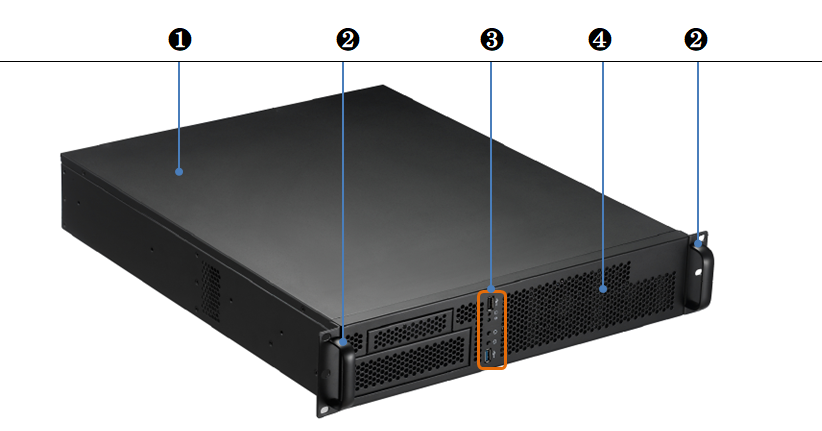

| System Features Overview |
|
|
| ❶ | SGCC sheet metal cover & main structure | ❸ | Front control Kits |
| ❷ | Aluminum Handle & holder | ❹ | Front Panel with 8025 fan inside |
